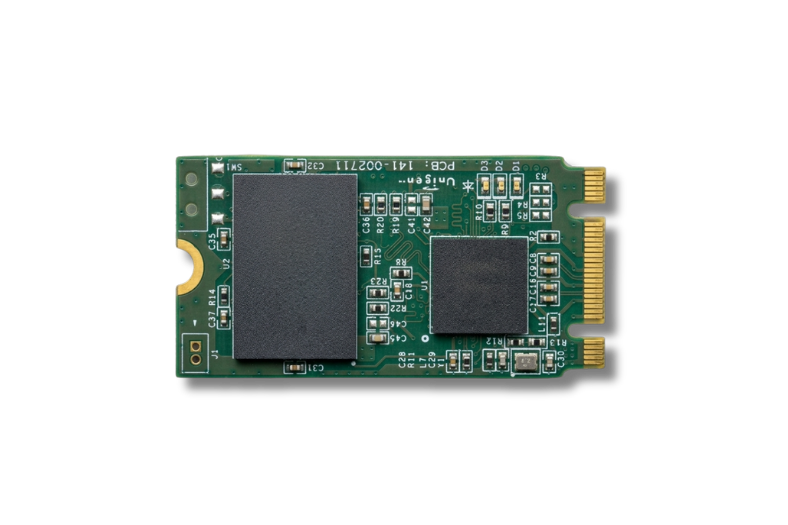

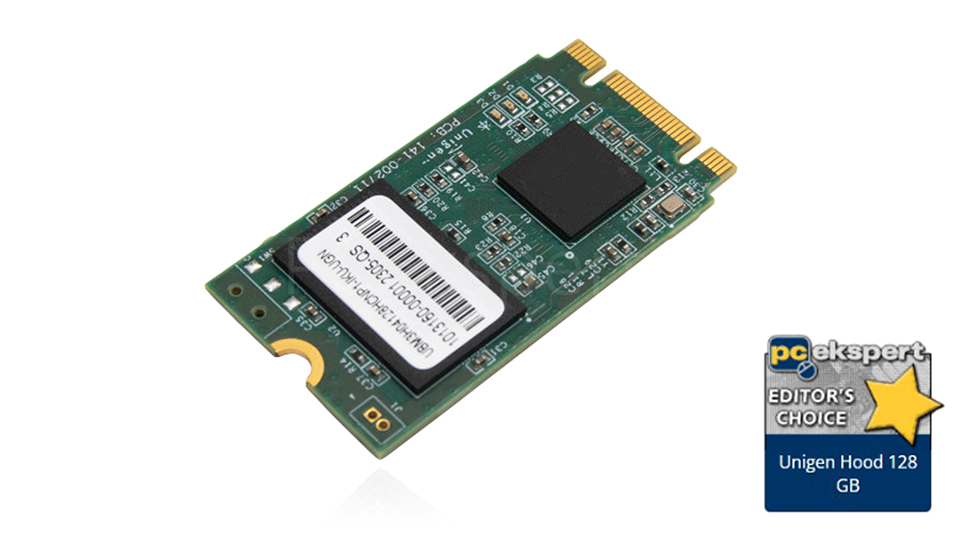

The Unigen Hood Series M.2 2242 SATA III SSD is specifically engineered for high-endurance storage and embedded computing. Designed for environments where reliability, performance, and Total Cost of Ownership (TCO) are critical, the Hood series provides a rugged storage solution in a compact form factor. Available in capacities from 32GB to 256GB, it is the ideal choice for mission-critical boot drives and industrial applications.
Features
- pSLC
- 32GB/ 64GB/ 128GB/ 256GB
- Provides up to 4PBW of endurance
- Operating Temperature 0℃ to 70℃
- Sequential Read: Up to 375 MB/s
- Sequential Write: Up to 240 MB/s
- Security: FIPS 197, AES-256, SHA-256, Secure Boot, TCG Opal
Specifications
| Appearance | ||
| Dimensions | 42(L) × 22(W) ×3.5(H) mm | |
| Weight | 3 grams | |
| Form Factor | M.2 2242 | |
| Interface | ||
| Interface | SATA III | |
| Storage | ||
| Flash Type | pSLC | |
| Capacity | 32GB/ 64GB/ 128BG/ 256GB | |
| Operating Environment | ||
| Operating Temperature | 0℃ to 70℃ (Operating) | |
| Storage Temperature | -40℃ to 85℃ (Non-Operating) | |
| Humidity | 5% to 95%, non-condensing | |
| Shock | Operating: 1,500G. Duration 0.5ms, half sine wave | |
| Vibration | 20G. Peak, 10 ~ 20KHz with 3 axis | |
| Power | ||
| Power Requirement | <1.4W | |
| Power Consumption (Idle) | < 0.2W | |
| Performance | ||
| Sequential Read/ Write (max.) | Read: up to 375 MB/S ; Write: up to 240 MB/S | |
| 4K Random Read/Write (IOPS max.) | Read: up to 4245 IOPS; Write; up to 3170 IOPS | |
| Mean Time Between Failures (MTBF) | 8,853,055 power-on hours | |
| Technology | ||
| Power Loss Protection (PLP) | Software | |
| DRAM Cache | No | |
| Error Correction Codes | Up to 66 bits correctable per 512-bytes sector (BCH) |
Ordering Information
| Part Number | Capacity |
| UBM3H0432H0CNP1-FKU-UGN | 32GB |
| UBM3H0464H0CNP1-HKU-UGN | 64GB |
| UBM3H04128HCNP1-IKU-UGN | 128GB |
| UBM3H04256HCNP1-JKU-UGN | 256GB |
