Unigen offers PowerGEM® cables separately for those modules that do not include them or should a different cable length be required. The 6-pin cable provides the connection between the NVDIMM-N and PowerGEM delivering power and enabling communication for safe, reliable operation. Multiple standard lengths are available to offer the best fit for routing and placement.

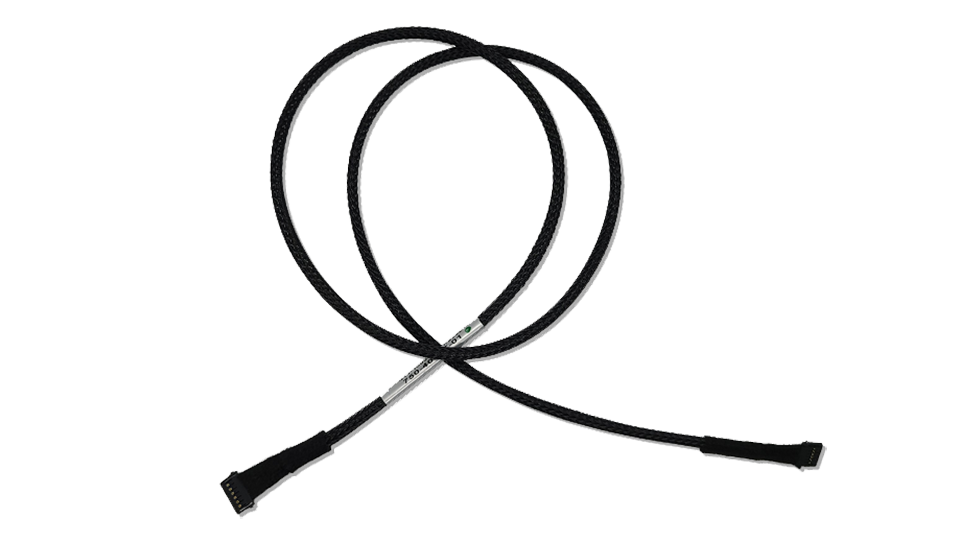

6-Pin Cable
Features
- Backup power to NVDIMM from PowerGEM®
- I2C communication between NVDIMM and PowerGEM®
- Braided cable sheath
- Two micro 1.5mm pitch wire-to-board housings
- UL10368 AWG26 tin plating annealed copper wire
- Current rating: 2A
- Voltage rating: 100V
- RoHS, UL1601, UL94-0 compliant
- Multiple lengths available
Specifications
| 6-Pin Cable | ||
| Current Rating | 2A | |
| Voltage Rating | 100V AC | |
| Operating Temperature | -20°C to +85°C | |
| Insertion Force | 7.6N (1.8kg/f) | |
| Extraction Force | 1.18N (0.12kg/f) | |
| Pin pitch | 1.5mm | |
| # of pins | 6 | |
| Max length | 900mm |
Ordering Information
| EOL Notice |
| This product has been designated as End-of-Life (EOL). For additional information please contact Sales. |
